high precision digital LCR meter 200KHz MCH-2816A, test frequency meter

FOB Reference Price:Get Latest Price
US $1,000-1,499 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
MCH
Model Number:
MCH-2816A
Frequency:
50Hz-200KHz
Basic precision:
0.1%
Product name:
digital LCR meter 200KHz MCH-2816A, test frequency meter
Model:
MCH-2816A
Signal output impedance:
30Ω,100Ω alternative
Color:
White
Display:
LCD
Weight:
3kg
Application:
Automotive
OEM:
20PCS
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard export cartons, 3unit per carton
Port
shenzhen
Lead Time :
within 5 days after checking the deposit
Product Description

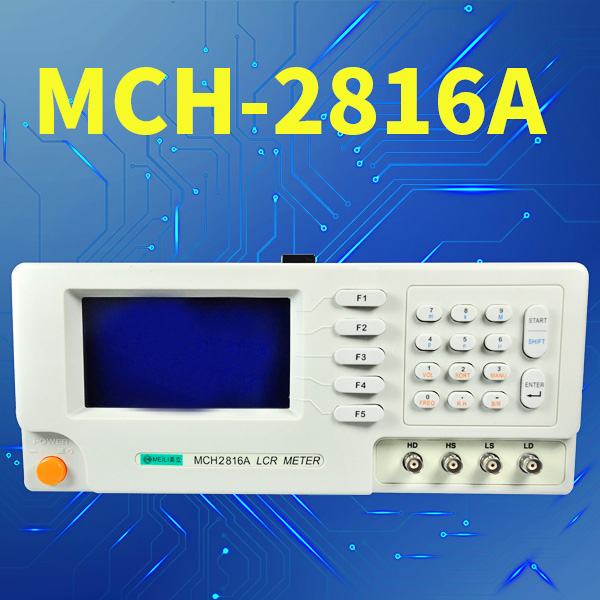

high precision digital LCR meter 200KHz MCH-2816A, test frequency meter

MCH-2816A-1MCH-2816A-4



Feature:



MCH2816A precision LCR meter has high test frequency of 300kHz and 0.01Hz stepping arbitrary programming, and it has 10mV-2V signal level, all making it meet the precision test requirements of production line quality control, in-coming inspection and lab. Its HANDLER, RS232c interfaces are used for the component automatic sorting system, which provides the conditions for computer telecommunication and test recording.
Flexible frequency-response analysis:
Due to non-ideal inductor, capacitor and resistor, in order to precisely evaluate the characteristics of one component in one frequency band, MCH2816 could use its signal generation ability with 10mHz resolution to correctly analyze frequency response of the component parameters in any frequency band. In particular, it can do the precise measuring of the resonant impedance of the low-frequency ceramic resonant devices which has wide impedance range.



Technical index



Test functions

Test parameters

Z, C, L, X, B, R, G, D, Q, θ

Basic precision

0.1%

Equivalent circuit
Mathematical function

Serial, parallel
Absolute error, percentage error

Range mode

Automatic, hold

Trigger mode

Internal, manual, outside, bus

Test speed

Slow: 650ms
Middle: 90ms
Fast: 32ms

Calibration function

Open-circuit, short-circuit, load calibration

Test ports

Five ports

Average times

1-255

Display mode

Direct reading, ABS, %, V/I
(voltage/ current test), selector counting

Display

240x 128 dot-matrix graphic LCD display, six digits resolution

Test signal

Test signal frequency

20Hz-200kHz, 0.01Hz stepping arbitrary programming

Test signal level

0.01Vrms-2.0Vrms, 0.01V stepping arbitrary programming

Signal output impedance

30Ω,100Ω alternative

Test display range

Z, R, X

0.00001Ω-99.9999MΩ

C

0.00001pF-999.99mF

L

0.00001μH-9.99999kH

G,B

0.00001μs-999.999s

D

0.00001-9.99999

Q

0.00001-99999.9

θ(DEG)

-179.999°-179.999°

θ(RAD)

-3.14159-3.14159

%

-999.999%-999.999%

Comparator and interface

Comparator

10 selectors, 9 qualified, 1 unqualified. The other one is supplementary.

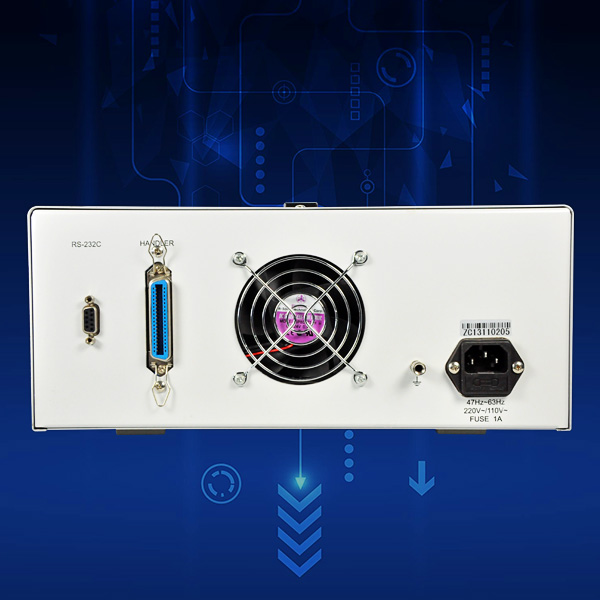

Interfaces

RS232C, HANDLER

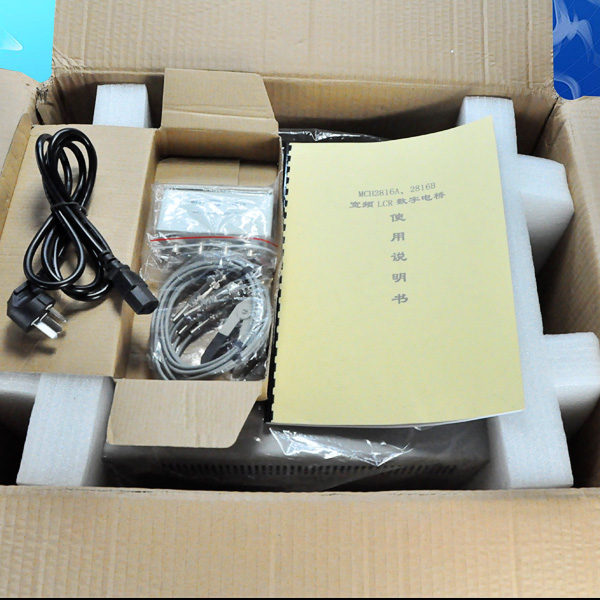

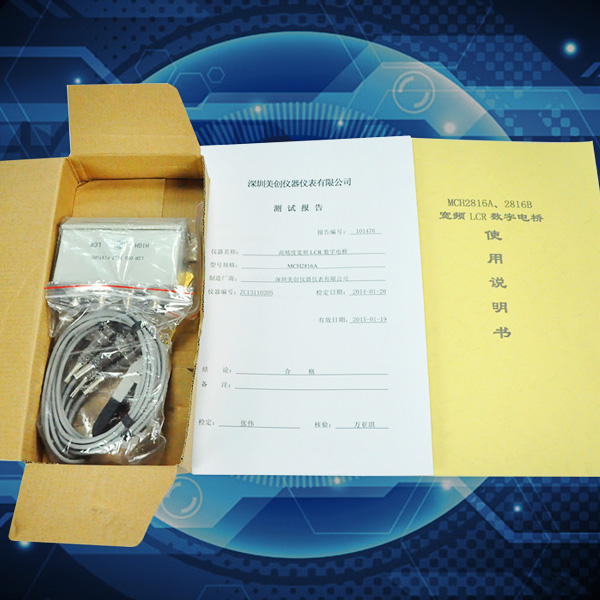

Packaging & Shipping
