MVT-171 single Millivoltmeter 1mV-300V in 12 steps

FOB Reference Price:Get Latest Price
US $50-60 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
MEILI
Model Number:
MVT-171
Product name:
MVT-171 single Millivoltmeter 1mV-300V in 12 steps
Application:
Automotive
Channel:
signal
Display:
Pointer type
Weight:
3kg
Brand:
MEILI
Usage:
Test Equipment
Model:
MVT-171
MOQ:
1PCS
Power Supply:
110v/220v
Supply Ability
Supply Ability:
600 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard export catons,6units per carton
Port
shenzhen
Lead Time :
within 2 days after checking the deposit
Product Description

MVT-171 single Millivoltmeter  1mV-300V in 12 steps

MVT-171-1MVT-171-5

Features:

Advance circuit design with imported components ensure minimum accuracy deviation

Signal needle, operate solely

Frequency:5Hz-1MHz

AC Voltage:1mV-300V,max.(DC+AC 500V)

dB measurement: -80dB~50 dB

Measuring with voltage adjustment

360o rotation rnob

10MΩ input impedance



Specifications:

Specification                   MVT-171 Signal-needle Millivoltmeter

Measuring range

Voltage: 1mV~300V in 12 steps

dB: -80 ~+50dB

dBm:-80~+52dB

(0dBm=1mV,600Ω)

Measuring Mode

Measuring with voltage adjustment

Error

Within 3% at 1Khz,full scale

Frequency Response

5Hz-1MHz: ±10%

10Hz-500KHz:±5%

20Hz-200KHz:±3%

30Hz-100KHz:±2%

Readout at 1KHz as a reference

Input Impedance

10MΩ ±5%,45pF

Max. Input Voltage

500V(DC+AC peak):1V~300V

100V(DC+AC peak):1mV~300mV

Stability

±5% of full scale, at 10 variety of line voltage

Survival Voltage

Less than 200uV at 1mV range and short-circuit of input

Cross-talk

Independent:≤80dB connecting 600Ω load

consistent:≤50dB connecting 600Ω load

Gain

60dB

Output Voltage

1Vms ±20% at full scale

Output Voltage

600Ω ±20% at 1KHz

Distortion

Less than 1% at dull scale

Signal to Noise Ratio

More than 30dB at 0.3mV range

Frequency Response

5Hz-500KHz:within ±3%

Ambient

10°C~40°C/85%RH

Power supply

220V/110V ±10%;50/60Hz

Dimension

128(W)×190(H)×239(D)mm

Weight

3Kg



Packaging & Shipping

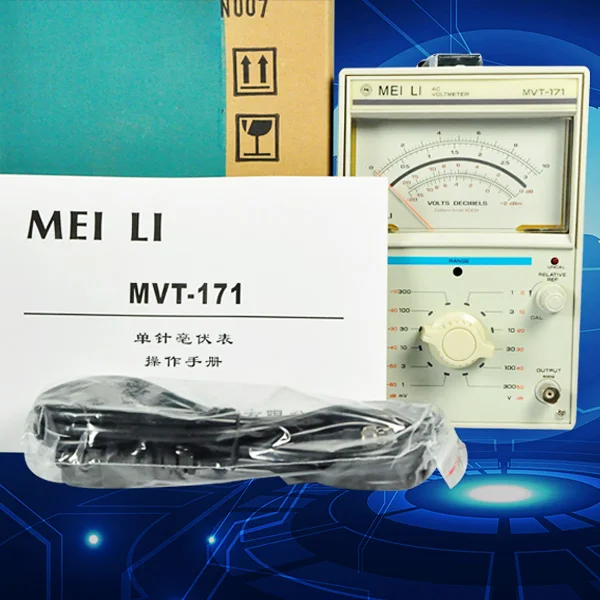

MVT-171 single Millivoltmeter  1mV-300V in 12 steps
