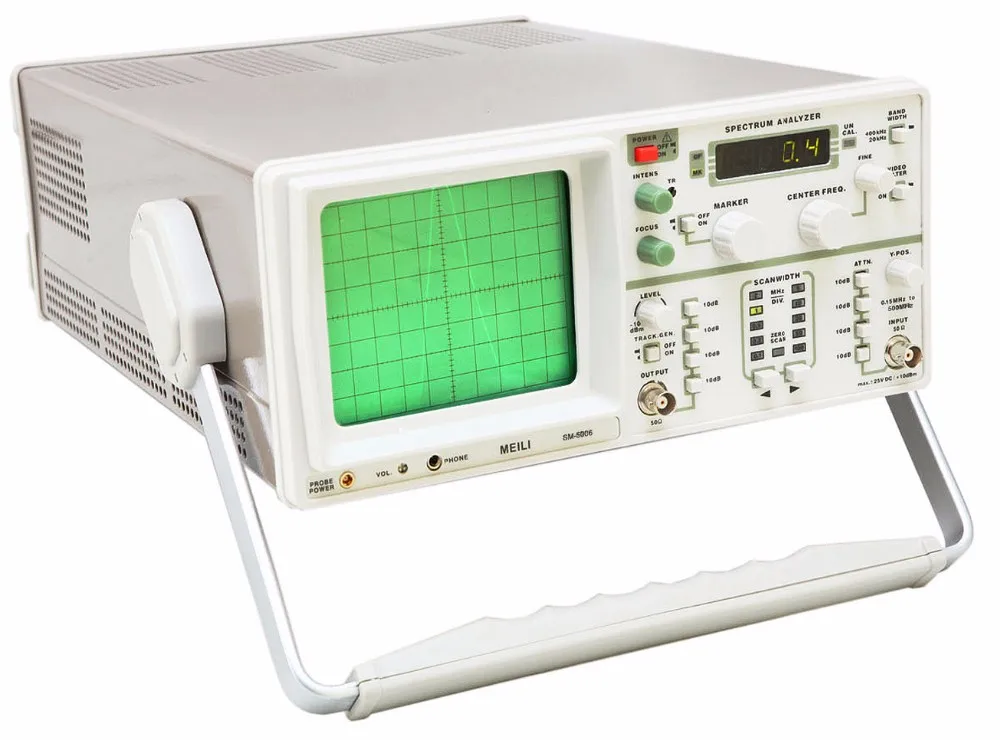

High Quality Electrical SM-5005 /SM-5006 150KHz~500MHz Spectrum Analyzer

FOB Reference Price:Get Latest Price
US $350-580 / Units | 5 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
MCH
Model Number:
SM-5006
Supply Ability
Supply Ability:
20 Unit/Units per Day
Packaging & Delivery
Packaging Details
standard export cartons:
1.2 units per carton
2.carton dimension: 500*390*240mm
3.Gross weigth: 8kg/pc
Port
Shen Zhen
Lead Time :
Shipped in 20 days after payment
Products

Products descriptions

SM5005/5006 spectrum analyzer is used for the early test in the development of electrical products, troubleshooting of CATV/MATV system as well as the test and trouble diagnosis of cellular phone system. Combined with the near field probes of Mz530, it can detect the missing fields of radio frequency

SM5011 is equipped with a tracing signal generator, and in the combined use of spectrum analyzer and tracing signal generator, it can complete the work which cannot be done by other frequency sweep system, such as sweep generator, oscilloscope etc...



Input frequency response0.15-500MHz, 3dB
Display accuracy of central frequency+/-200KHz (frequency sweep width +200KHz)
Accuracy of mark frequency+/-0.1% (frequency sweep width +100KHz)
Frequency display resolution100KHz (4½ bit LED display)
Frequency sweep width0.1MHz/div-100KHz/div with 1, 2 and 5 step system
And 0Hz/div (0 frequency sweep) Accuracy: +/-10% (each range)
Intermediate frequency bandwidth20KHz and 400KHz
Video filter(When on) 4KHz
Amplitude range-107~+13dB
Reference level-27dB~+13dB (10dB for every step) +/-2dB
Average noise level-97dB(20KHz intermediate frequency width)
Display range of CRT screen80 dB(10dB/div)
Display range of vertical display+/-2dB (2 With attenuator) 250MHz signal
Input attenuator0-40dB (4x10dB step) error: +/-1dB/10dB
Maximum input level+10dBm,+25V DC(Input attenuator set at 0dB)
+20dBm (input attenuator set at 40dB)
Frequency stabilityOver 150KHz/hour
Input jack typeBNC
Input impedance50Ω
Power supply220V/110V; +/-10%; 50Hz/60Hz
Tracing signal generator (SM-5006 ONLY)
Input frequency response0.15-1050MHz, 3dB
Output level range-50~+1dBm (4x10dB) +/-3dB
Output attenuator0-40dB (4x10dB step) error: +/-1dB/10dB
Input jack typeBNC
Input impedance50Ω
Others
DC output+6V (for probe)
AM demodulation outputLoad impedance ≥16Ω
