MAG-450 100KHz-150MHz frequency ranges RF Signal Generator

FOB Reference Price:Get Latest Price
US $1-80 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
MCH
Model Number:
MAG-450
Product name:
MAG-450 100KHz-150MHz frequency ranges RF Signal Generator
Frequency range:
100KHz~150MHz (3rd harmonic wave up to 450MHz)
Frequency accuracy:
3%
Level control:
1mV~100mV
Weight:
4kg
Dimensions:
128(W) x 190(H) x 239(D) mm
Model:
MAG-450 RF Signal Generator
Display:
LCD
load:
6pcs/carton
OEM:
50PCS
Supply Ability
Supply Ability:
100 Unit/Units per Day
Packaging & Delivery
Packaging Details
1.6pcs/carton
2.Gross weight: 4kg/pc
3.carton dimension:55*36.5*52cm
Port
Shen Zhen
Lead Time :
within 2 days after checking the deposit
Product Description

MAG-450  100KHz-150MHz frequency ranges RF Signal Generator

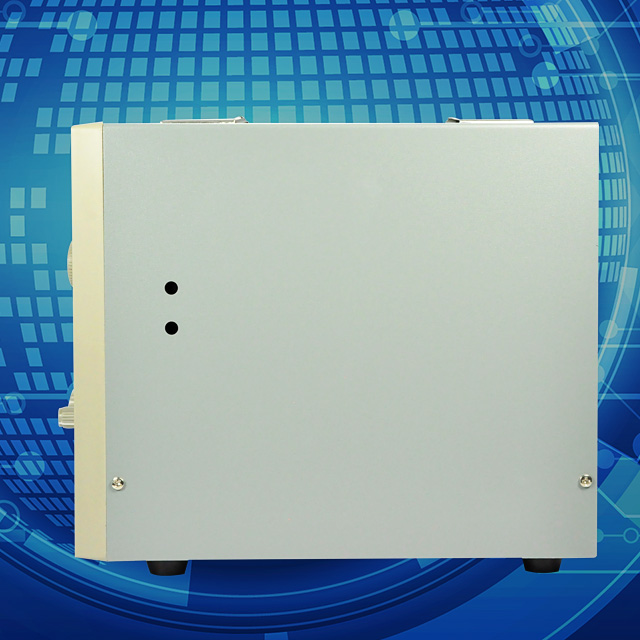

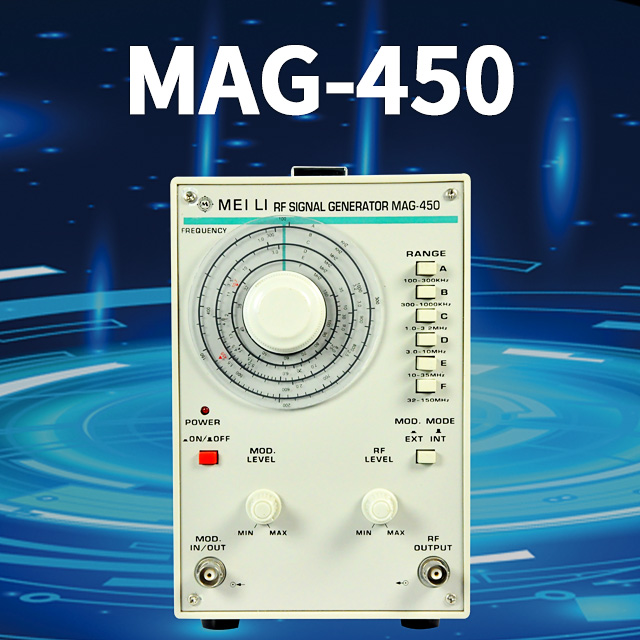

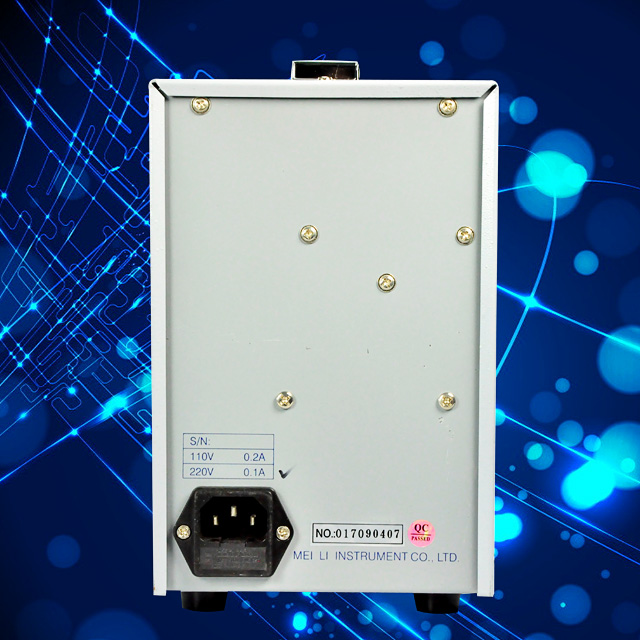

MAG-450-1MAG-450-3MAG-450-4

Features:
-Advanced circuit design with imported components ensure minimum accuracy deviation.
-Signal frequency:100kHz~150MHz, 3 harmonic up to 450MHz
-Output wave form:sine and amplitude-modulation wave
-RF/AM output, max, intensity≥10Vp-p
-External modulation signal can be set between 50Hz~20kHz

ModelMAG-450 RF Signal Generator
Frequency ranges A: 100KHz~300KHz
 B: 300KHz~1MHz
 C: 1MHz~3.2MHz
 D: 3MHz~10MHz
 E: 10MHz~35MHz
 F: 32MHz~150MHz
Frequency range 100KHz~150MHz (3rd harmonic wave up to 450MHz)
Frequency accuracy ±3%
Output waveform RF/AM signal waveform
Output impedance 600W
Radio frequency output Over 100 mVrms (when frequency ≤35MHz )
Level control 1mV~100mV
Internal modulation 1KHz ±2% >2Vrms output   (1KHz±2%>2Vrms)
External modulation 50Hz~20KHz for any setting  (50Hz-20KHz)
Normal operation 10ºC to 35ºC/within 85%RH
temperature/humidity
Power supply 220V/110V +/-10%; 50Hz/60Hz
Dimensions 128(W) x 190(H) x 239(D) mm
Weight4kg

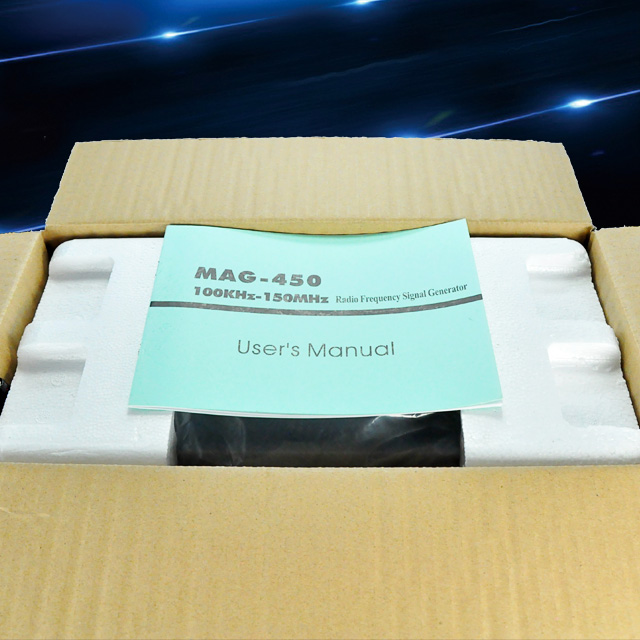

Packaging & Shipping

MAG-450  100KHz-150MHz frequency ranges RF Signal Generator

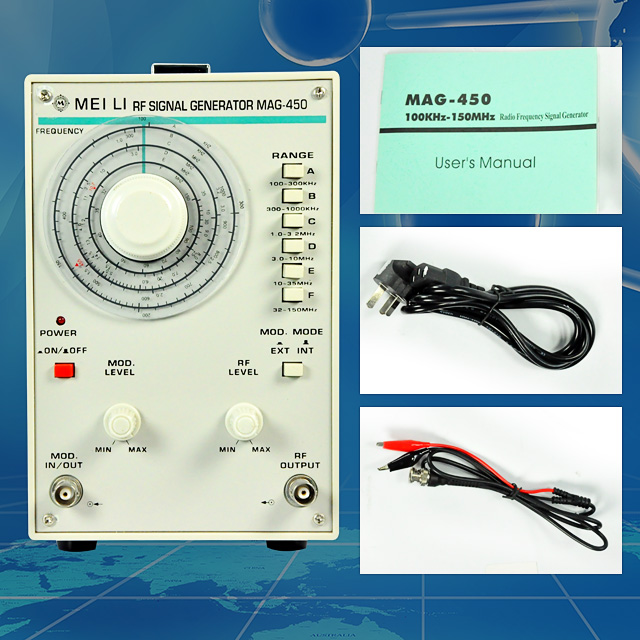

MAG-450-5MAG-450-6



1.6pcs/carton


2.Gross weight: 4kg/pc


3.carton dimension:55*36.5*52cm
