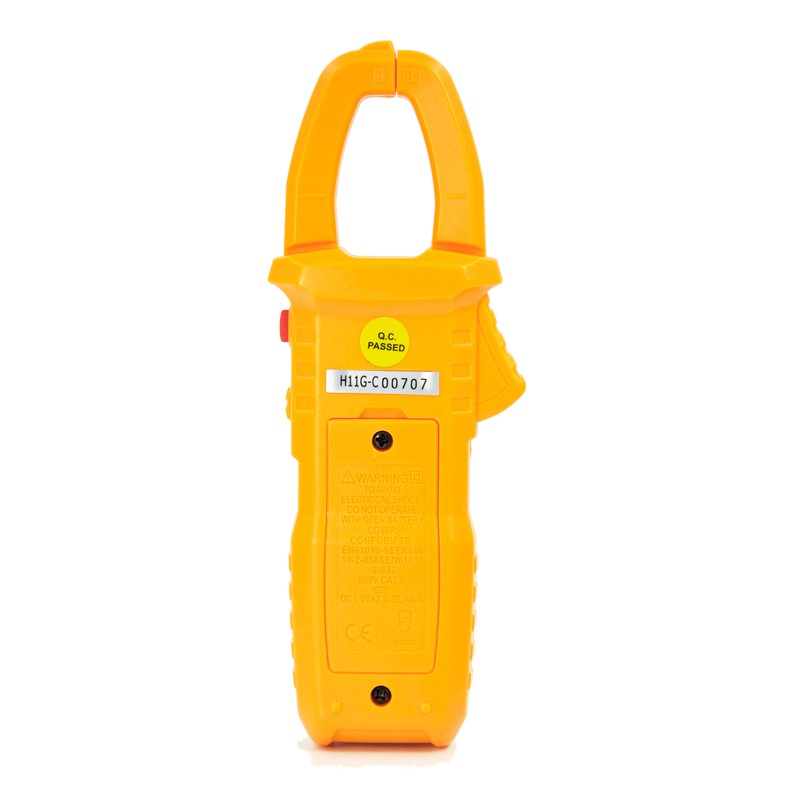

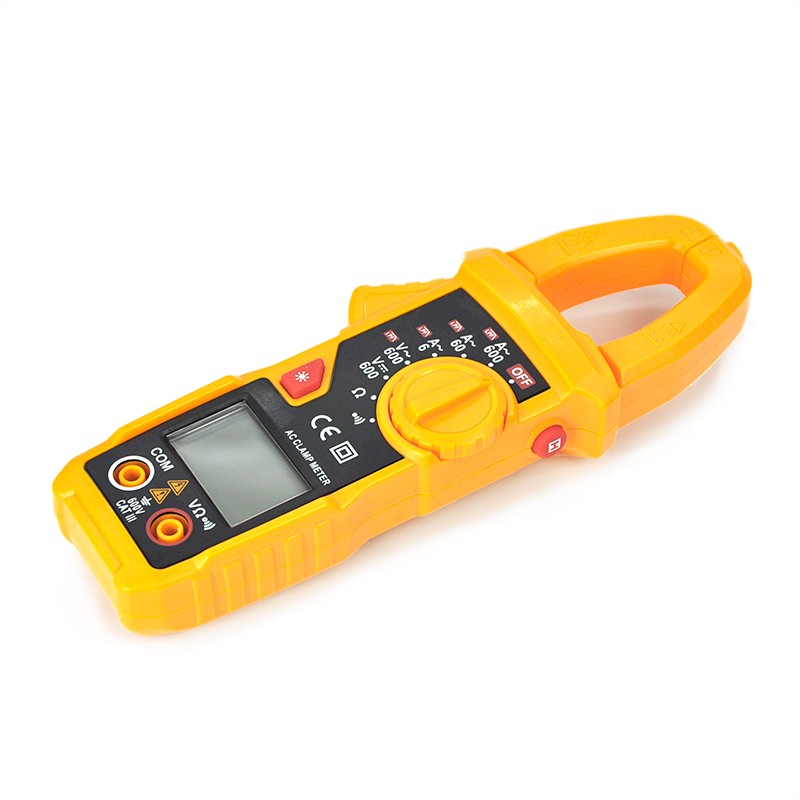

Handheld Digital Clamp Meter MCH-3018S for lab use

FOB Reference Price:Get Latest Price
  • 100 - 299 Units
    US $18.00
  • 300 - 499 Units
    US $15.00
  • 500 - 999 Units
    US $13.50
  • >=1000 Units
    US $12.50
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
MCH
Model Number:
MCH-3018S
Display Type:
Digital Only
Measuring Current Range:
0-600A AC
Measuring Voltage Range:
0-600V AC DC
Measuring Resistance Range:
0-10 KΩ
Measuring Capacitance Range:
N/A
Measuring Inductance Range:
N/A
Operating Temperature:
0~40 ℃
Dimensions:
187x65x38 mm
Weight:
250g
Supply Ability
Supply Ability:
1000 Unit/Units per Day
Packaging & Delivery
Packaging Details
11.2kgs/carton, 30 pcs/carton, carton size: 42.5*25*36CM
Port
Shen Zhen
Lead Time :
Shipped in 20 days after payment
Products

Products descriptions



MCH-3018S is a smart digital clamp meter , no need user select functions while using, it can automatically recognize Ac Current,DC current,Resistance, continuity.

Dual Display enable to display frequency while measuring AC Voltage ,AC current or while measuring AC Current simultaneously measure with AC/DC Voltage and Resistance.

Non contact Voltage detector are more safe, reliable , efficient to be measured whether the object has AC voltage.



Max count 6000 to provide a clear resolution for users while measuring; 600A AC current measurement meets different users for different occasions;



LPF Fuction can filter high frequency interference while measuring AC singal , so to enhance the accuracy of signal measurement

Meanwhile, This Clamp Meter has AC/DC

Voltage,Continuity ,Max resistance 60kOHm etc

EN61010-1,-2-030,EN61010,-2-032  600V CAT III ,Meet with ROHS/REACH Environmental Standard.





Specification

Range

Accuracy

DCV

0.5~600V

+/-(0.5%+3)

ACV(40~65Hz)

1.0~600V

+/-(0.8%+5)

Resistance

0~10Ohm

+/-(0.8%+3)

Continuity

<30Ohm

<30Ohm

ACA(40~65Hz)

10mA~400A

+/-(2.5%+5)

400A~600A

+/-(3%+5)

Frequency

40Hz~1000Hz

1%rdg

Peak ACA

10~900A

+/-10%rdg+3

Features

Counts

6000

Range

Auto

ACA(AC+DC)

6A/60A/600A

DCV

6V/60V/600V

ACV(AC+DC)

6V/60V/600V

Continuity

Yes

Resistance

6KOhm/ 60kOhm/ 600KOhm/6 MOhm/10Mohm

V/Ohm/A Auto Scan

Yes

Frequency(clamp)

1Khz

Frequency(Voltage)

1Khz

LPF(1kHz-3dB)

Yes

Data Hold

Yes

Backlight

Yes

NCV

Yes

Peak Maz

Yes

Low battery Indication

Yes

Auto Power off

Yes

Dual Display

yes

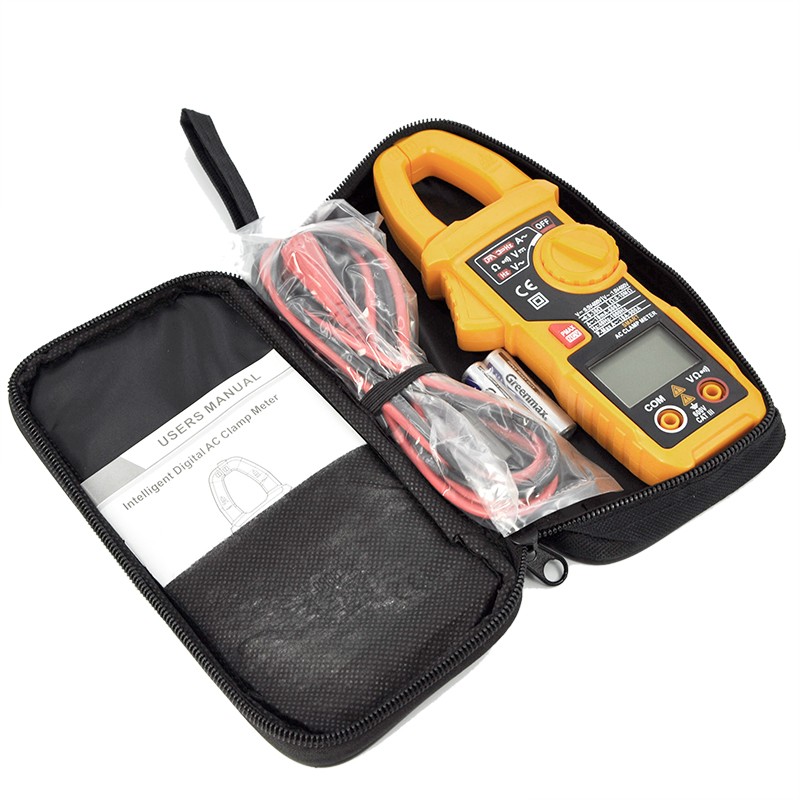

Gift Box x 1

-User Manual x 1

-Portable Bag x 1

-Plastic Bag x 1

-Test Leads x 1






Company background




MCH Instrument Co. Ltd, was established in 1995, founded by Mr Huang Jing Wen, (CEO & Director of company)

We Build up our own Brand – MCH series in measuring, electronic tester instrument equipments such as Oscilloscope, spectrum Analyzer, Function & signal generator, Frequency counter, DC Power Supply unit Etc….

After 20 years of growing, MCH become strong, not only in product manufacturing, but do have own expert teams in management and products R&D,

MCH won a lot of achievements in China, and we archived ISO9001:2008. Most of our products are CE, ROHS certified

We do have OEM & ODM services

S. E. Q (Service, Economic pricing, Quality) is our concern, we know what you need, and we know what we have.

THAT WHY, Your concern is our target.

Looking forward to building up our partnerships.







Certifications




Our service






S. E. Q (Service, Economic pricing, Quality) is our concern, we will serve you better, we try our best to ensure all the inquiries and requirements will reply ASAP not more than 24hours



after sales.jpg

After sales service

-All our products have 12 months warranty

-Components and spare parts will deliver for free once the causing traced within warranty period

-We have technical teams will serve you once you face any products issue, thru voice or video conference.





Packing & delivery

11.2kgs/carton, 30 pcs/carton, carton size: 42.5*25*36CM
